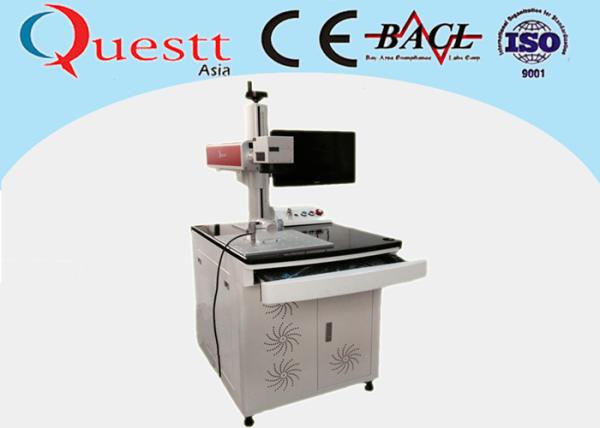

20W Fiber Laser Marking Machine For SS

  • 1
  • 2

Brand Name : Questt

Model Number : FL20B

Certification : CE ISO BACL

Place of Origin : Wuhan,China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, Western Union,, L/C

Supply Ability : 2100 sets / Year

Delivery Time : 6 working days

Packaging Details : Plywood case

Laser Power : 10 / 20 / 30W

Laser Wavelength : 1064nm

Cooling : Air-cooled

Gross Weight : 120kg

Control : Laptop

Service : Oversea service available

Contact Now

Fiber laser marking machine for metal plastic 10W 20W 30Watt Questt FL20B

Product Description


1. Instead of utilising imported German fibre lasers, we use locally manufactured Chinese laser sources (manufactured under UK supervision). Whilst the quality and warranty remain the same, we are able to offer these lasers at a reduced price due to lower manufacturing costs.

2. These machines are equipped with the latest imported high speed Galvanometer scanning systems. High quality light beam, long life, and stable equipment performance exempts maintenance. This machine is quick and precise. Marking is a non-touch process with a permanent effect, and stable running. Our own easy to use CNC software is compatible with software outputs from AutoCAD, CorelDraw, Photoshop, etc.

3. It can automatically perform the engraving of characters, signs, graphs, images, bar codes, two-dimensional codes, and automatically increasing serial numbers to a wide range of materials. It can support many file formats including PLT,PCX,DXP,BMP, JPG, and so on. It can use TIF fonts directly.

4. The ability to run constantly 24/7 makes this machine meet the demand of massive on-line and off-line industrialized production.

Specification

Product Specifications
Product Quantum-FL20B
Purpose Marking
Laser
Laser Wavelength 1000-1100nm
Laser Type Fiber LASER
Laser Output Power 20W
typical Laser Life Span 100,000hrs
Modulation frequency 20-100kHz
Max. Working Speed 7000mm/s
Galvanometer Yes
Lens F-Theta Lens
Working Area
Beam Diameter/Quality M2<1.2
Working Area 70x70mm, 110x110mm, 160x160mm, 250x250mm
Repeatability 0.01mm
Positioning accuracy 0.01mm
Min Line Width 0.01mm
Marking/Cutting Depth 0.01-0.2mm (depending on material)
Control
Cooling Air cooled
No. Axis Z Axis (Manual)
Rotation Optional(Automatic only)
Power supply AC220V, 50/60Hz, 1kVA (110-120V Optional)
Controller Computer with marking software
USB 2.0 Compatible YES
File Types PLT, DXF, AI, DST, BMP, JPG, TIF
Max. Operating Time 24hrs (recommend 1hr cool-down period)
Physical Characteristics
Dimensions 0.3m?/td>
Weight (kg) 70kg
Guarantee: (see Ts&Cs on support page)
General Guarantee 12 Months from date of arrival at destination
Laser Source 2000hrs/3 months - LAMP PUMPED & CO?(Except Smart?Series)
20,000hrs/18 months - Smart?Series
10,000hrs/12 months - Diode Pumped
100,000hrs/2 years - Fiber LASER

Application

Applications include marking text, barcodes, and graphics/pictures on plastics, metals, food packaging, clothing, jewelry, ICs, etc.

Fiber laser marking machine Samples

20W Fiber Laser Marking Machine For SS

FAQ

1. Q:What is the warranty of the laser marking machine?

A:Questt Lasers have a warranty for 1-2 years.

2. Q:Are you a factory or trading company?

A:Quess Lasers is a factory for 22 years.Got import and export License.

3. Q:How about the quality?

A:Quess Lasers Technology is from Germany.High quality best price.

Accessory details

20W Fiber Laser Marking Machine For SS
