High Power IPG 500W Laser Rust Removal Machine , Rust Cleaning Machine CE ISO
Description:

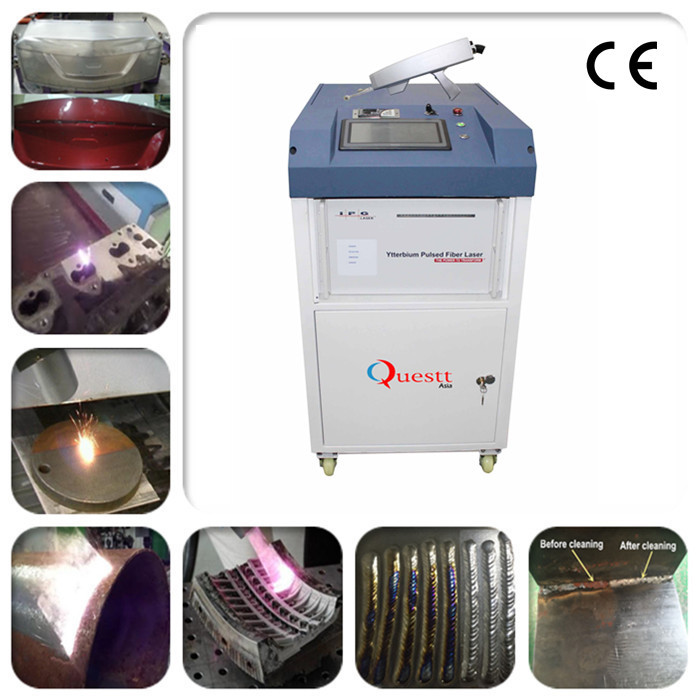

QA-LC500 is a IPG 500W high power fiber laser clean machine for rust removal. We can use hand head gun for cleaning, also we can use scanner head for rust removal. The outlook case can designed as your preferance.
Principle:
1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;
2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;
3 instant to make the dirt molecules evaporate, gasification or decomposition
Product features:
1. Rapid, clean, accurate cleaning;
2. No damage to the substrate processing equipment;
3. Can be used for a long time, low operation cost;
4. Automatic operation of equipment;
5. laser decontamination equipment can be used for a long time;
6. no pollution
Contaminant:
The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure 1) are the most difficult to destroy.
Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants
Specifications:
Laser Cleaning Machine Rust Removal.pdf
| Model | QA-LC60 | QA-LC100 | QA-LC200 | QA-LC500 |
| Laser source | Fiber | Fiber | Fiber | Fiber |
| Laser Power | 60W | 100W | 200W | 500W |
| Fiber cable L | 3 M | 3 M | 5 M | 10M |
| Pulse Energy | 1.5 mJ | 1.5 mJ | 10 mJ | 50 mJ |
| Wavelength | 1060nm | 1060nm | 1060nm | 1060nm |
| Frequency | 50-500KHz | 50-200KHz | 20-50KHz | 10-50KHz |
| Clean speed | ≤5 M²/Hour | ≤10 M²/Hour | ≤15 M²/Hour | ≤50 M²/Hour |
| Scann speed | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling | Water cooling | Water cooling |
| Dimension | 450*350*500 | 500*400*550 | 900*600*1100 | 1600*1100*1800 |
| Weight | 30Kg | 40Kg | 120Kg | 300Kg |
| Beam width | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
| Optional | Manual | Manual | Manual | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ | Single Phase 220V, 50HZ |
Laser dry cleaning method:
Use pulses laser to clean rust directly, it will generate vibration after the laser energy is absorbed by the base or particles, then seperate the base and comtaminant.
Application :
Metal workpiece laser derusting, degreasing, laser paint removal, laser removal of zinc and film, laser coating removal,
Industries: aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etc.

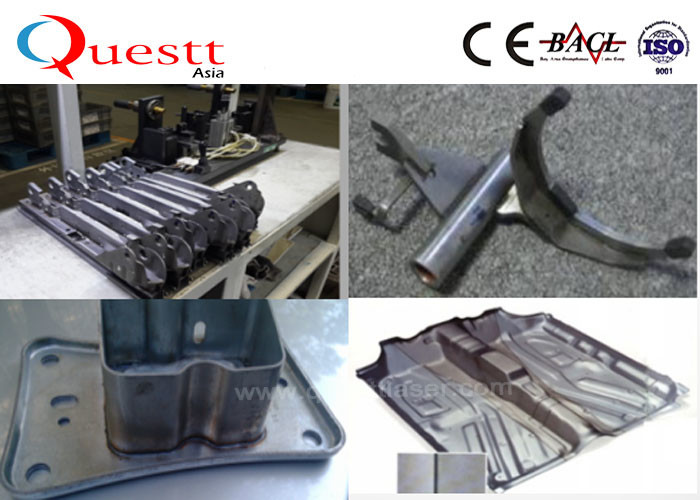

Sample details:
FAQ
1 Q: What is the warranty of the laser cleaning machine?
A: The warranty is 2 years, but we offer whole life after-sale service.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service.
4 Q: How is the operation of the machine?
A: We offer operation manual and videos, show you how to operate the machine.
We can also send engineers to your factory for training.
