Suitcase Laser Rust Removal Machine for Cleaning Metal 100W Mopa Lzser
Description:

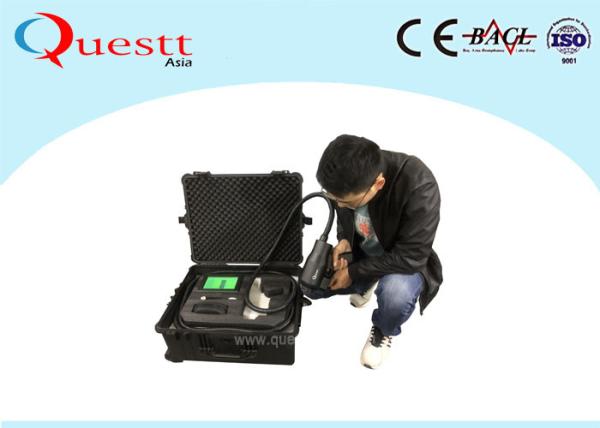

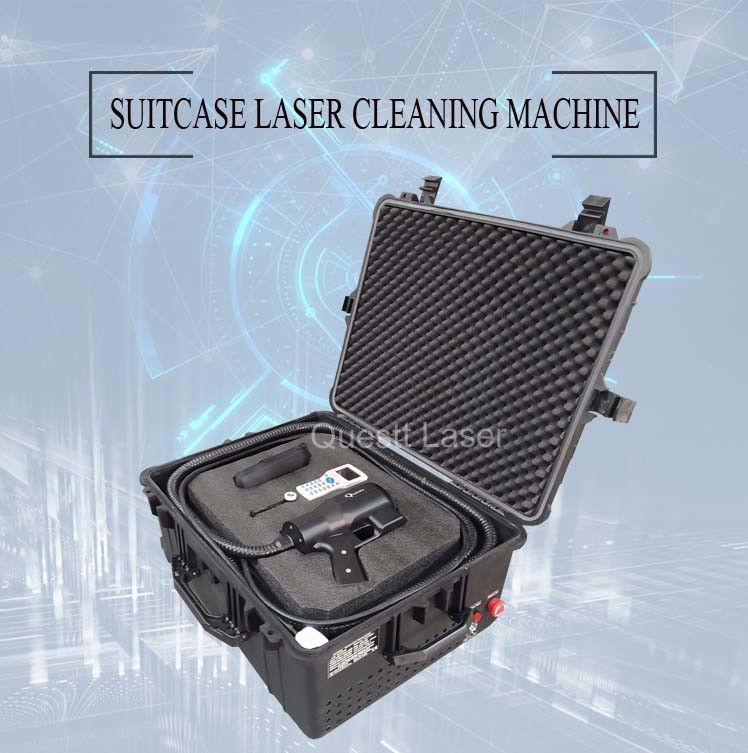

QA-LC100S-D Laser rust removal machine is a suitcase type machine, which equipped with a small and light laser gun.
The laser head equipped with double scanner motor, so the laser beam length and width are both adjustable.
The laser head is easy to carry and move, free to work outdoor for long time.
The laser system was connected with Phone bluetooth, very convenient for parameter settings.
The setting of parameters is very convenient!You can make settings on your phone with our APP software.
The fiber calbe length for 100W is 3 meters, can be max 6 meters, we also can change and make it longer, up to 100 meters for 1000W.The laser derusting machine can be customized according to customer special demands.
This special design is good for outdoor cleaning job.
We have sealed bench top, hand held type, moving case type and backpact type to choose.
Characteristic:
1. Phone App controller
2. Suitable for the removal all kinds of materials
3. Light weight laser gun to carry
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material;
Specifications:
| Model | QA-LC50S | QA-LC100S-D |
| Laser source | Fiber | Fiber |
| Laser Power | 50W | 100W |
| Fiber cable length | 1.5-3 M | 1.5-5 M |
| Laser Wavelength | 1060nm | 1064nm |
| Pulse Energy | 1 mJ | 1.2-1.5 mJ |
| Pulse frequency | 1-1000KHz | 1-2000KHz |
| Scanning speed | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling |
| Dimension | 500*300*650mm | 500*300*650 mm |
| Weight | 28Kg | 29Kg |
| Beam width | 10-70mm | 10-100mm |
| Optional | Manual/Auto | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase AC 220V,50/60HZ | Single Phase AC 220V, 50/60HZ |
Application scope
All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etcall the old and durty items
FAQ
1 Q: What is the warranty of the trolley case clean laser machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
5 Q: What is the brand of laser source?
A: Raycus or IPG.
