APP Handheld Bluetooth Controller Mobile Case 100W Fiber Laser Cleaning Machine
Description:

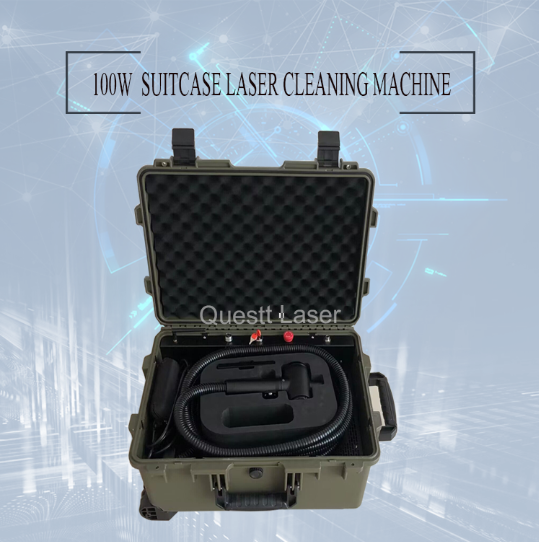

QA-LC100S is a suitcase type Laser cleaning machine, which equipped with a dual axis laser head, weight only 1.5kgs
The laser system was connected with Phone bluetooth, very convenient for parameter settings. Also can use a handheld controller
The laser derusting machine can be customized according to customer special demands.

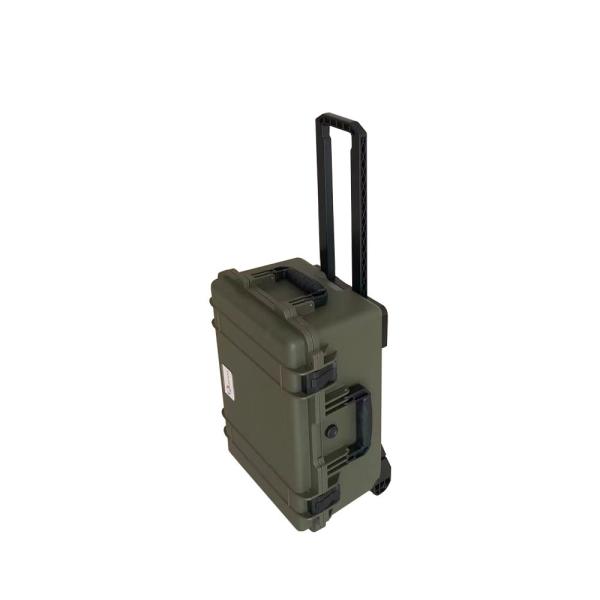

The outlook is the same as a travle case , which is very easy to take along and move, the total weight is only 38kgs.
This special design is good for outdoor cleaning job. Also can travel to other city for demostration.
Characteristic:
1. App controller, connected with Phone Bluetooth or handy controller
2. Laser pulse width and frequency are adjustable
3. No damage to the substrate.
4. Accurate cleaning and paint removal effect;
5. Dual axis laser scanner head 1.5kgs
Specifications:
| Model | QA-LC100S | QA-LC200S |
| Laser source | Fiber | Fiber |
| Laser Power | 100W | 200W |
| Fiber cable length | 5M | 5 M |
| Laser Wavelength | 1060nm | 1064nm |
| Pulse Energy | 1.5 mJ | 1.8 mJ |
| Pulse frequency | 1-1000KHz | 1-3000KHz |
| Scanning speed | 0-7000mm/s | 0-7000mm/s |
| Cooling | Air cooling | Air cooling |
| Dimension | 500*350*600mm | 500*350*600 mm |
| Weight | 28Kg | 38Kg |
| Beam width | 10-70mm | 10-100mm |
| Optional | Manual/Auto | Manual |
| Temperature | 5-40 ℃ | 5-40 ℃ |
| Voltage | Single Phase AC 220V,50/60HZ | Single Phase AC 220V, 50/60HZ |
Application scope
All industries, widely used in aerospace, mold, microelectronics, construction, nuclear power plants, automobile manufacturing, medical, military etcall the old and durty items
FAQ
1 Q: What is the warranty of the tcase laser rust removal machine?
A: The warranty is 2 years, but we offer whole life after-sale service. Online service is OK.
2 Q: What is your payment term?
A: T/T, L/C, Westen Union, etc. Any payment term you prefer.
3 Q: What is your after-sale service?
A: Engineers can offer oversea services and we can also offer online service, using online chatting tools like Whatsapp to talk with customers directly.
4 Q: How is the quality of the machine?
A: High quality. Price is reasonable.
5 Q: What is the brand of laser source?
A: Raycus or IPG.
