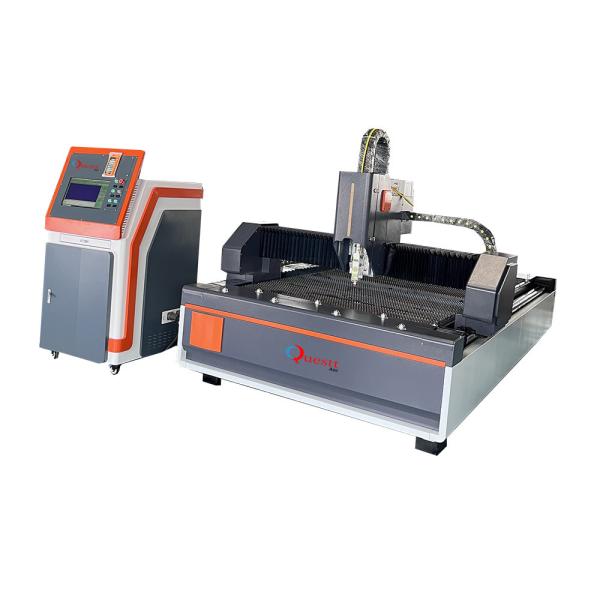

QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W

Name: QA3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W
Brand: QUESTT
Price: 16000 USD

QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W Manufactures

Brand Name : QUESTT

Model Number : QA-LC1500

Certification : CE ISO

Place of Origin : CHINA

MOQ : 1

Price : 16000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 SETS/MONTH

Delivery Time : 20 DAYS

Packaging Details : WOODEN CASE, CARTON

Product name : Fiber Laser Cutting Machine

Keyword : Metal Laser Cutting Machine

Function : Cutting Metal Materials

Laser power : 2000w/3000w

Type : Fiber Lasr Cutting

Cutting materials : Stainless Steel Carbon Steel Etc( Metal Laser Cutting Machine )

Laser source : Raycus IPG

Model : Rigid-FL2000-6020/Rigid-FL3000-6020

Working area : 3000*1500mm

Color : Blue-white

Contact Now

QUESTT Laser 1500W 3000W QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine

Product Description

♥What is the Specifications and Fetures? ♥

Overview

QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W

Brief Introduction

Rigid-FL1500 Fiber Laser cutting machine integrates high power fiber laser, optical, mechanical and electrical in one system which adopts latest laser technology, CNC control technology and high-performance laser power system to process all kinds of metal sheets cutting with high speed and efficiency.

The cutting range for the Laser Cutting Machine is 3000mm*1500mm. It has high speed and its products have smooth edge, small kerf width and little heat effect. This kind of machine is especially suitable for thin sheet metal cutting.

Technical Parameters

Laser output power	1500W
Laser wavelength	1070 nm
Laser medium	Glass fiber with rate-earth element
Max cutting speed	80m/min
Max cutting thickness	3-20mm according to material
Output energy regulating	10%~100%
Input electric power for laser	≤2KW
Type of cooling	Water cooling
Drive mode	Imported servo motor
Transmission mode	Imported high precision Rack and Pinion
Max-range for cutting	3000mm×1500 mm
Power supply	220V/50HZ
Contour dimension	4270mm×2420 mm×1750 mm

Configurations

Item	Details	Picture
Fiber Laser Source	1500W Fiber Laser Generator from China Model: MFSC-1500W
Laser Cutting Head	Auto focus Raytools from Swiserland Model: BM109
Servo Motor & Driver	YASKAWA From Japan
Reducer with Gear	Shimpo from Japan Model VRT-090-7 F3

Rack Pinion	YYC from Taiwan(World Brand) Model: M2(45 steel)
Linear Guiderail	Hiwin From Taiwan(world Brand) X axis model: HGH30CA2R4080ZACII Y axis model: HGH20CS2R2210ZACII
Control System	CyperCut from Bochu China
Oil Lubricated	Automatic lubricated
Gantry System	Steel gantry
Water chiller	Hanli 1500w From China
Pneumatic Components	Relay/AC contactor SCHNEIDER
Proportional valve	NNT

Warranty

The warranty period is 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially ,we are responsible for offering the fittings free of charge during the warranty period. Customer needs to send damaged fittings to us by courier with customer’s charge before we send back the alternative fittings. After the warranty period, parts need to be repaired or changed, shall be paid

Our factory

QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W

Packaging & Shipping

QA-3015 Series Metal Plate And Tube Fiber Laser Cutting Machine 1500W 3000W
